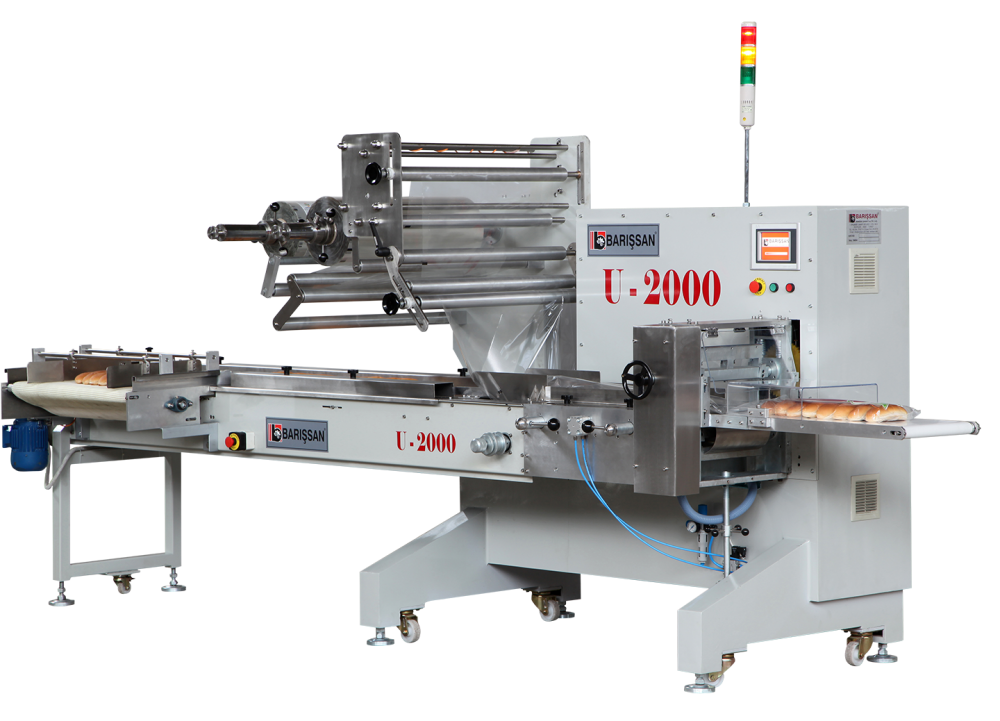

U2000, is the result of our 40 years of experience combined with the components of high quality European brands, was produced with an understanding of efficiency, durability and quality.
You can minimize your time, loss and energy costs with the hardware on it.
Product feeding is done manually by moving conveyor made of stainless steel.
It provides easy control with PLC automation.
Speed control, temperature control and package length adjustments can be easily provided with the color PLC screen.
No waste of packaging in printed packages with photocell system.
With the servo-controlled disk group and the servo-motor-controlled front group, packet length and packet progression are provided accurately.
Products of different sizes can be easily packaged with replaceable gears.
All parts in contact with the product are made of AISI 304 quality stainless steel. It is suitable for food production.
With the touch screen with internet connection that allows remote intervention, any malfunction can be remedied by remote assistance.
Equipped with a minimum level of mechanical parts, the machine provides the user with the advantages of easy operation and minimum maintenance.
Through flexiglass covers controlled by safety equipment, manual intervention is easier and possible work accidents are prevented.
PACKAGE DIMENSIONS (mm)
………………. Minimum …….. Maximum
Width 20 110
Length 60 200
Thickness 10 50
Capacity: 50-200 Packages / Minute
Packaging Material Thickness: Min. 25 Micron – Max. 40 Micron
Power Consumption: 4 kw / 380 V
Packaging Material: OPP, PP Packaging Material with Heat and Adhesion from A-A and A-B Faces
Maximum Coil Diameter: 400mm
